SQUARE D | SKU:
HOM230

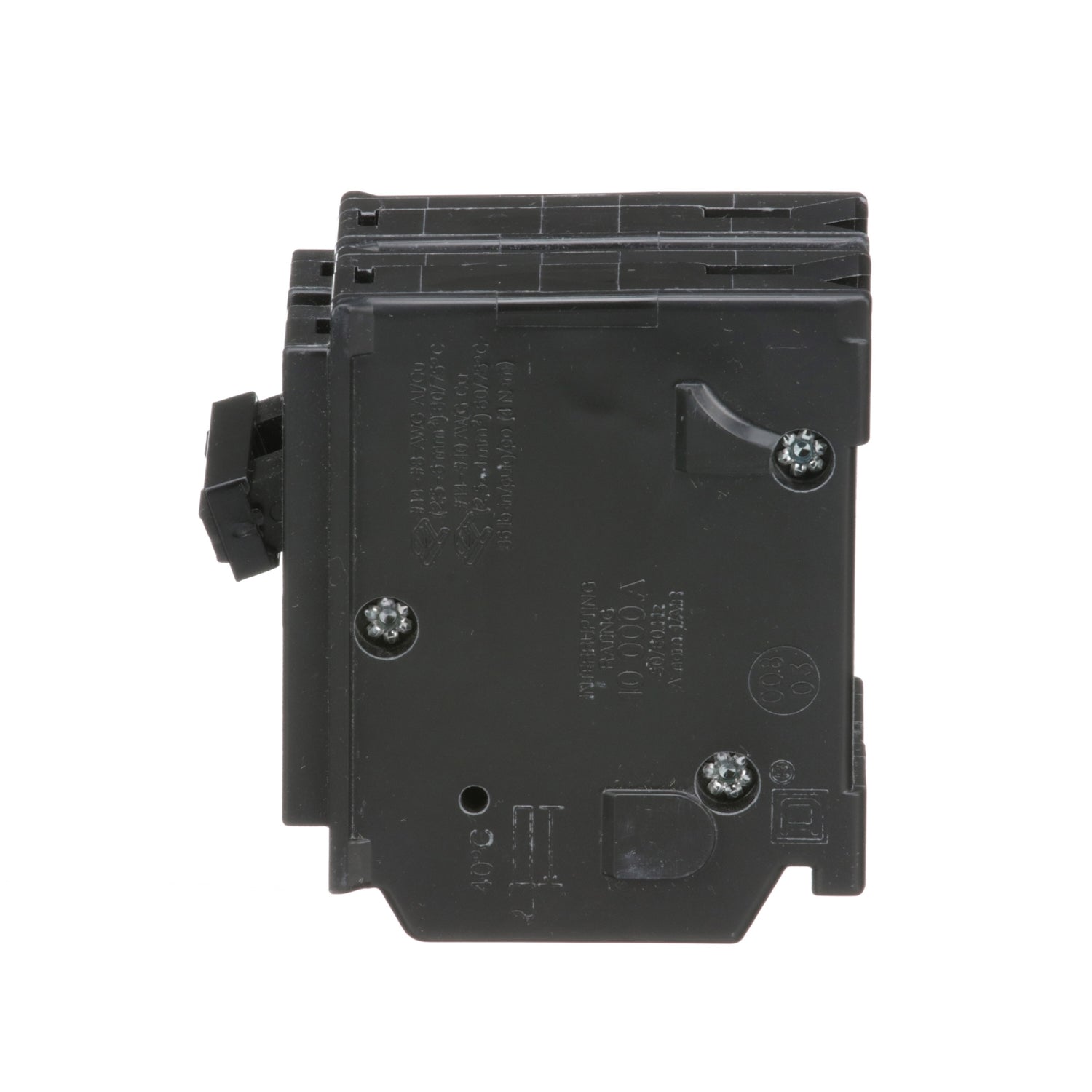

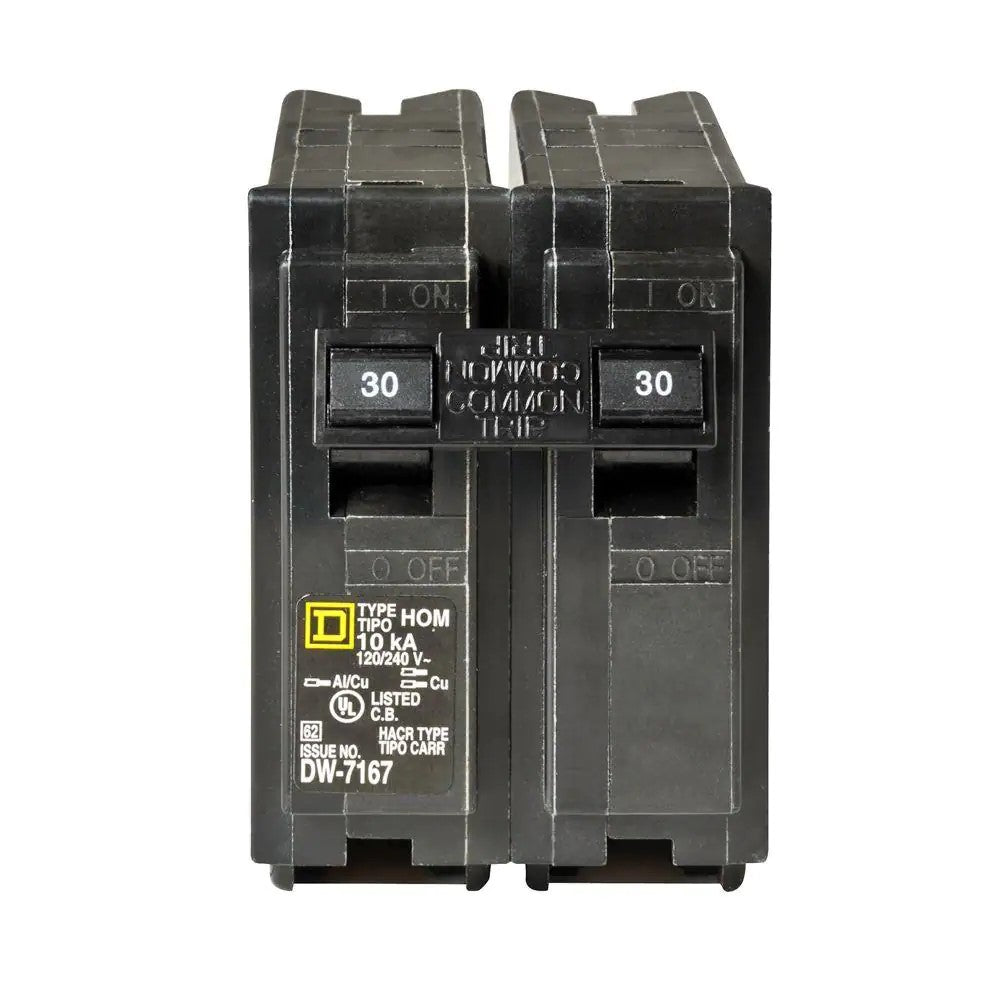

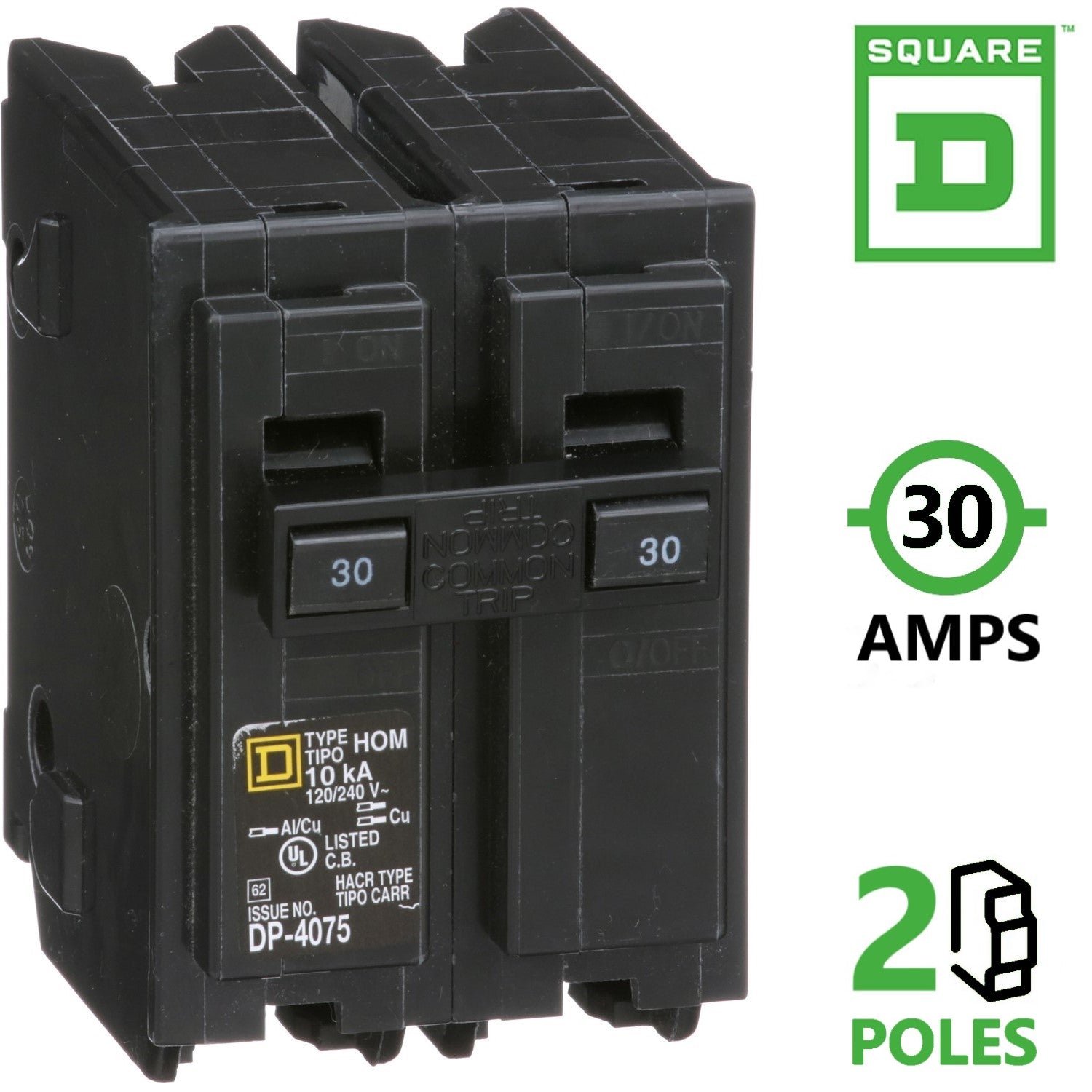

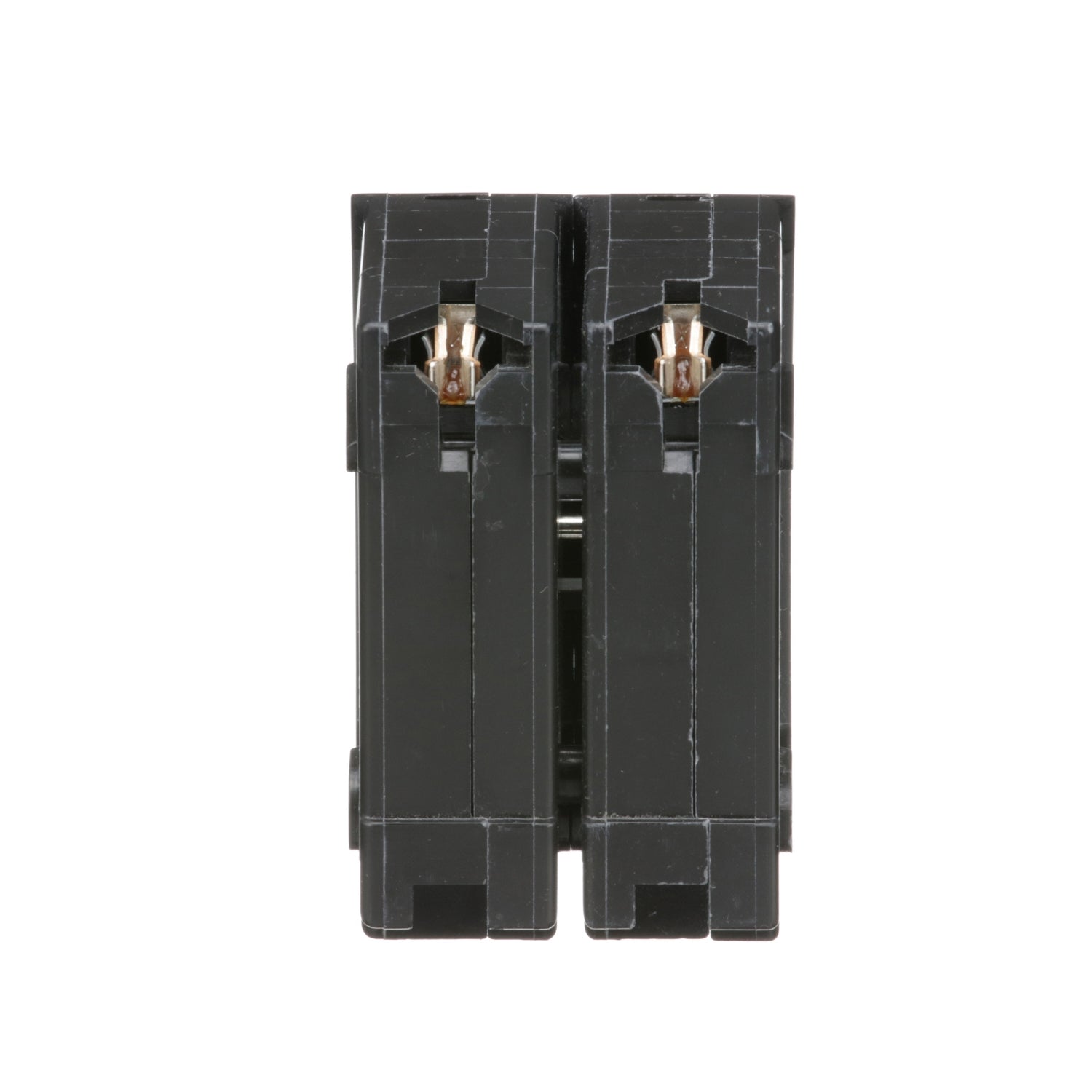

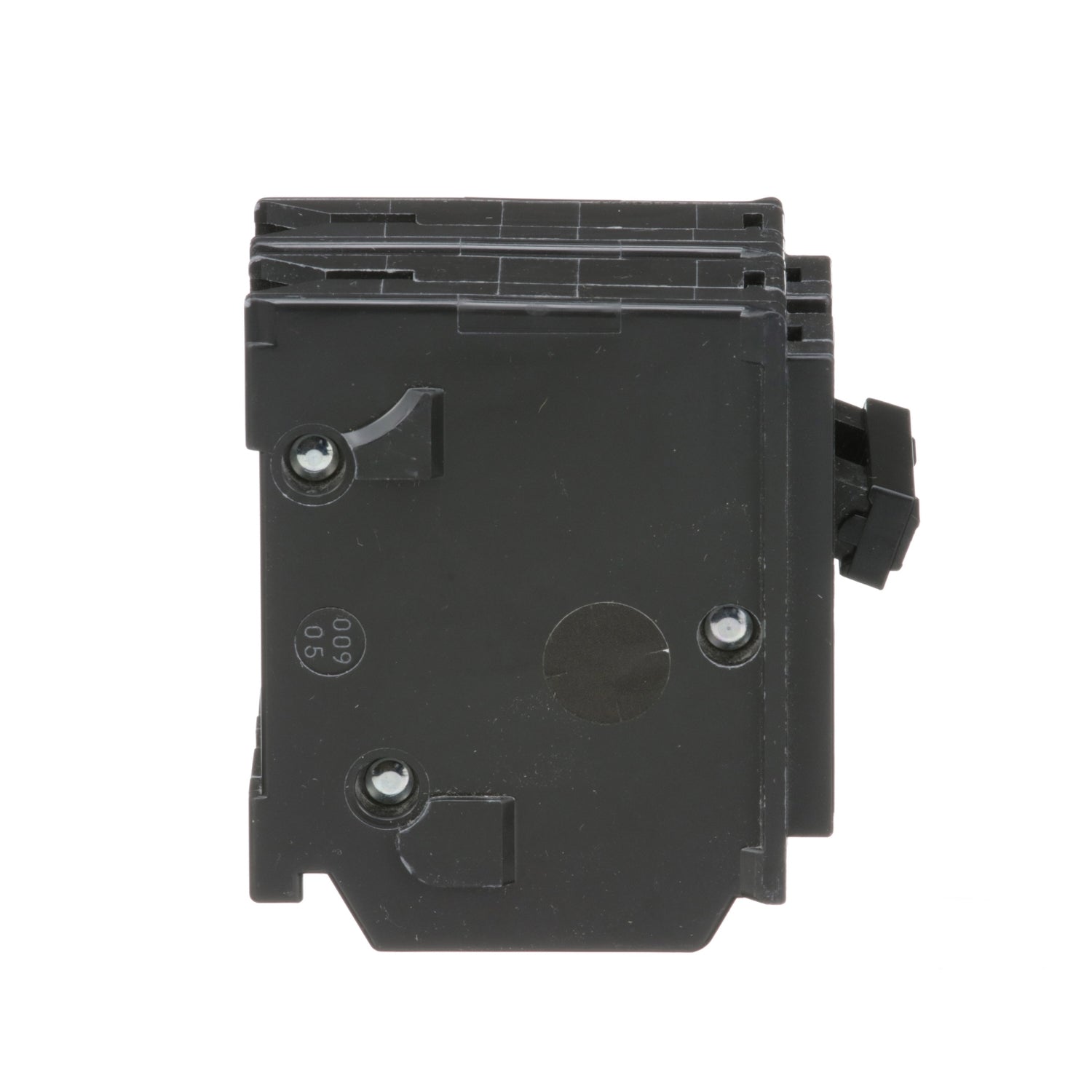

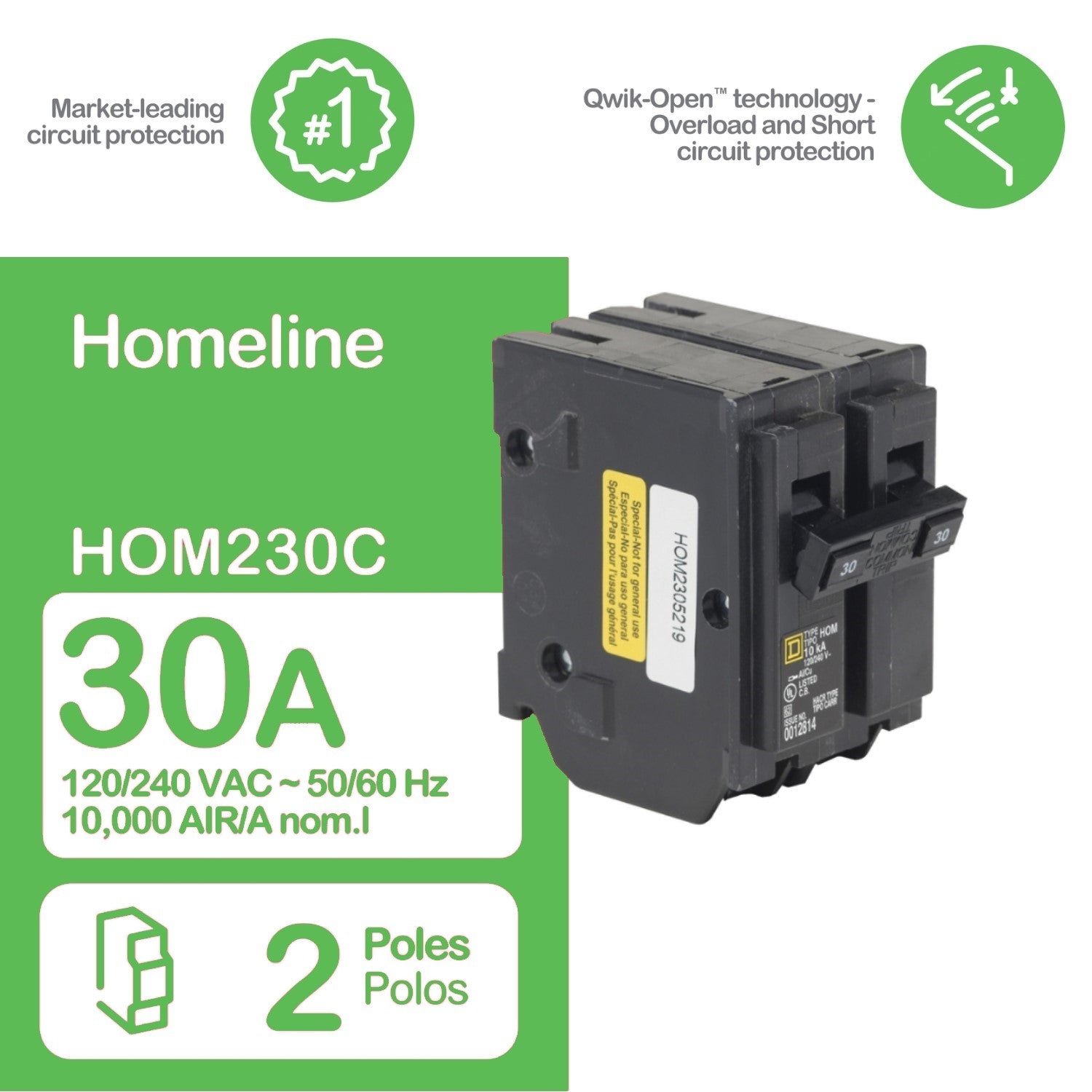

Square D 30 Amp Circuit Breaker, Homeline HOM230, 2 Pole, Plug In 30A, 120/240VAC
$24.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Square D 30 Amp Circuit Breaker, Homeline HOM230, 2 Pole, Plug In 30A, 120/240VAC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Get same-day shipping on in-stock items if you place your order by 2pm ET. Transit time is 2-6 days. See our Shipping Policy to see how quickly your package will arrive.
Square D 30 Amp Circuit Breaker, Homeline HOM230, 2 Pole, Plug In 3...
$24.99
Unit price
/
Unavailable
Square D Plug In Mini Circuit Breaker, Homeline, 30 Amp, 2 Pole, 120/240VAC, 10kA AIR, Standard Type, UL
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Specifications
| Product | Miniature circuit-breaker |
|---|---|
| Range | Homeline |
| Current Rating | 30 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 2 |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Clamp terminal for 2 cables |
| Wire Size | 1 x AWG 14...AWG 8 ( aluminium/copper ) 2 x AWG 14...AWG 10 ( copper ) |
| Tightening torque | 35.40 lbf.in (4.0 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 35.40 lbf.in (4.0 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4) |
|---|---|

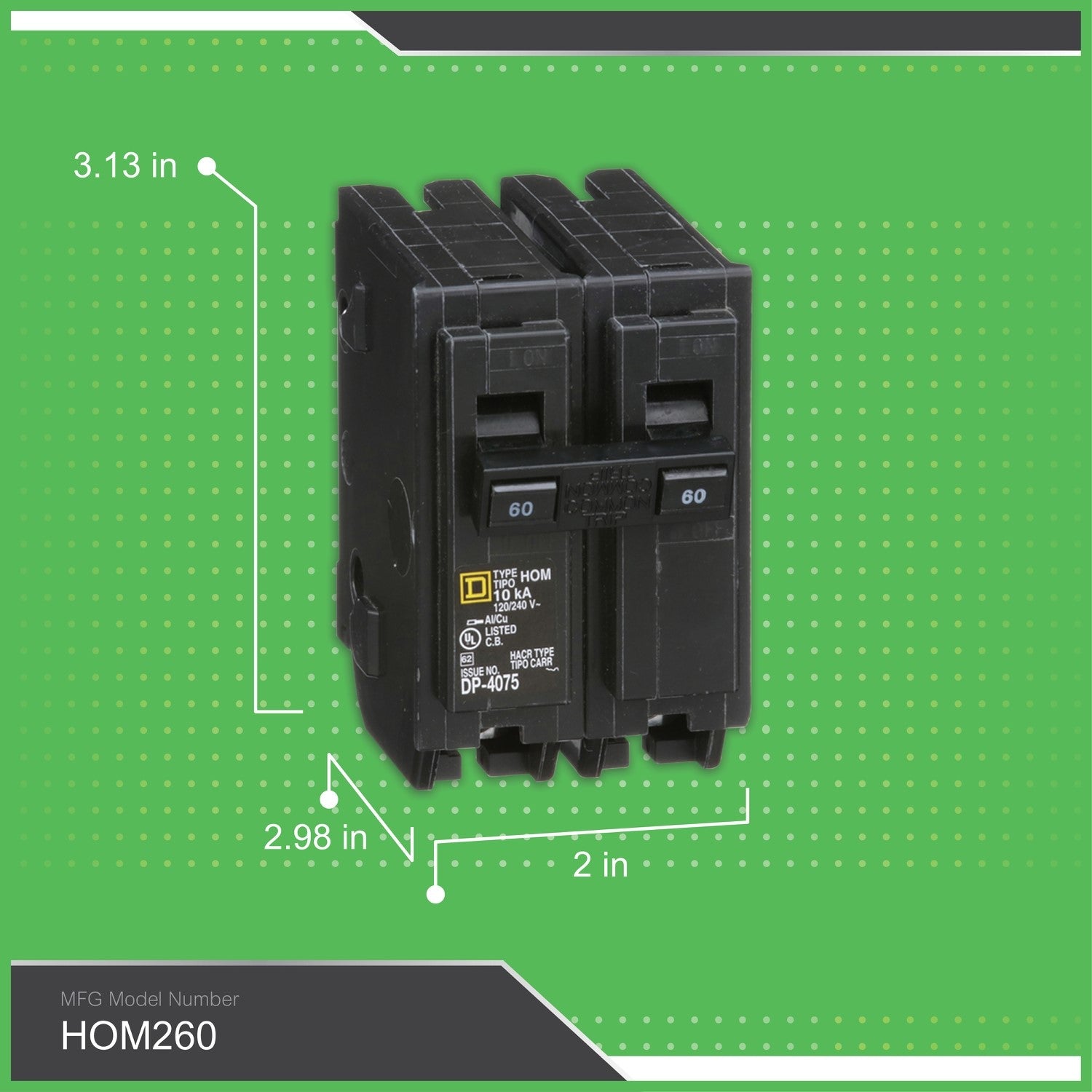

| Height | 3.13 in (79.50 mm) |
| Width | 2 in (50.80 mm) |
| Depth | 2.98 in (75.69 mm) |
