Square D 50 Amp Circuit Breaker HOM250 Homeline 2 Pole Plug In 50A, 120/240V, AC, Single Phase
Square D 50 Amp Circuit Breaker HOM250 Homeline 2 Pole Plug In 50A, 120/240V, AC, Single Phase is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Get same-day shipping on in-stock items if you place your order by 2pm ET. Transit time is 2-6 days. See our Shipping Policy to see how quickly your package will arrive.

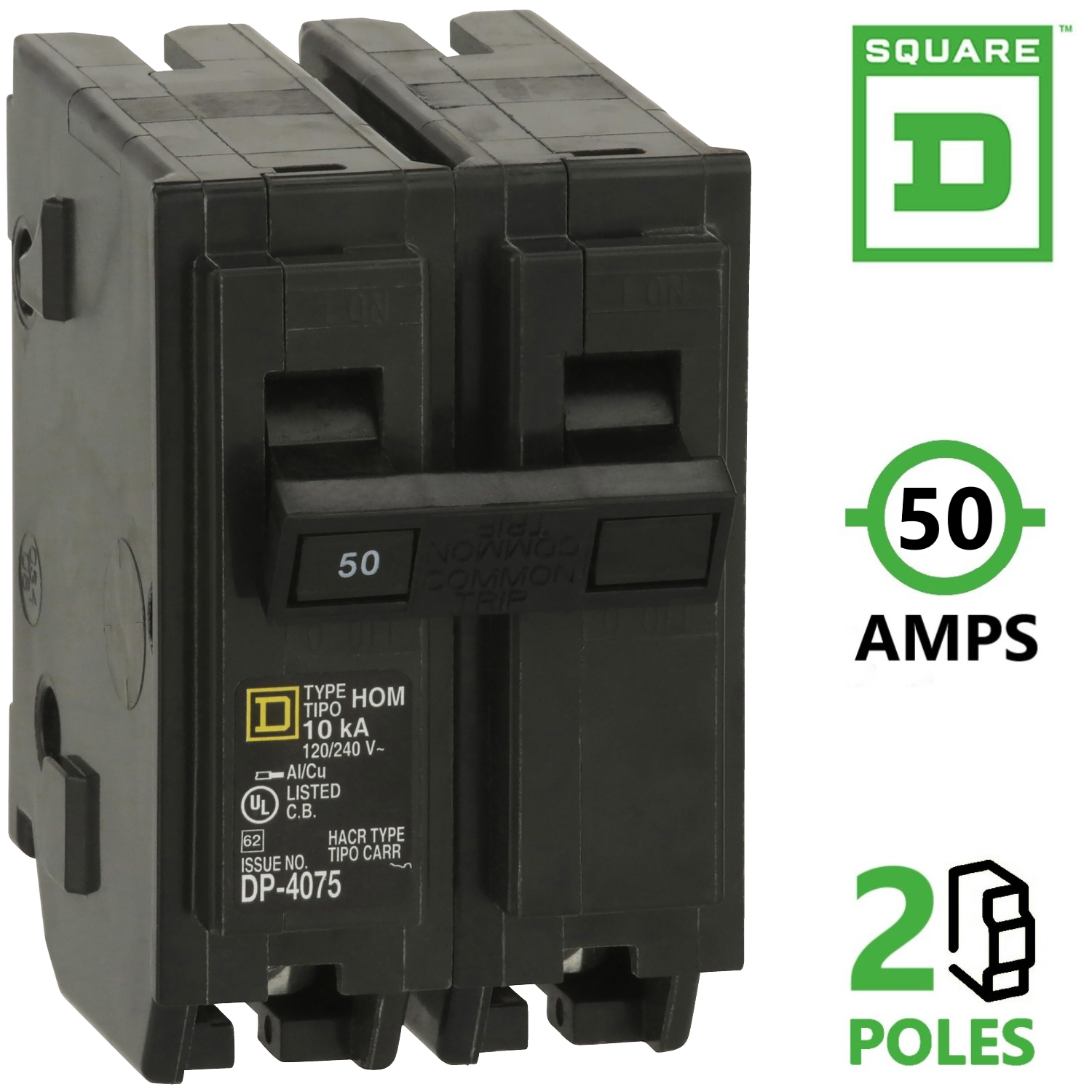

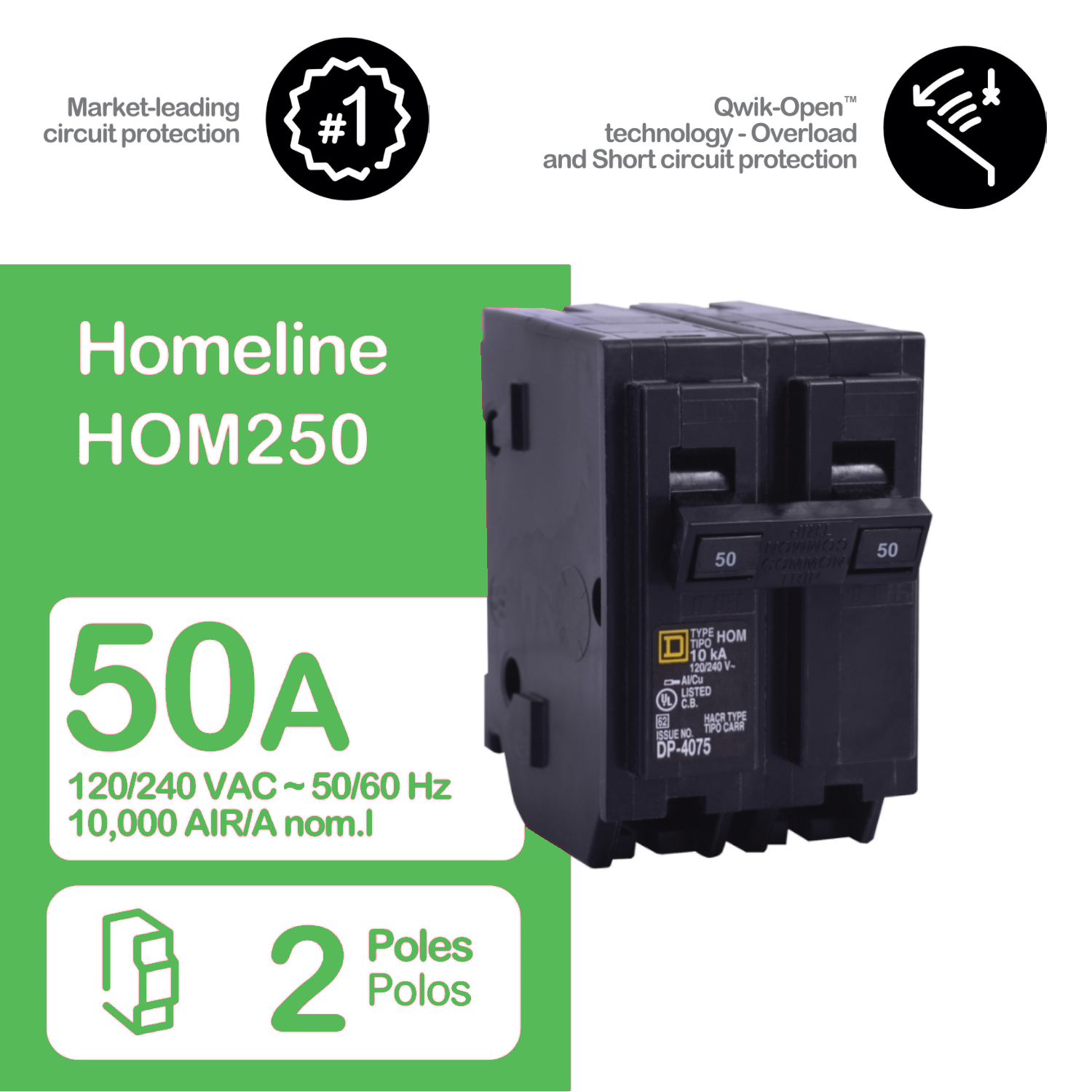

Square D Plug in Mini Circuit Breaker HOM250, Homeline, 50 Amp, 2 Pole, 120/240VAC, 10kA AIR, Standard Type, UL
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Specifications
Product | Miniature circuit-breaker |
---|---|
Range | Homeline |
Current Rating | 50 A |
Certifications | UL Listed |
Voltage Rating | 120/240 V AC |
Mounting Type | Plug-in |
Number of Poles | 2P |
Short Circuit Current Rating | 10 kA |
Number of Spaces | 2 |
Circuit Breaker Type | Standard |
Ratings | HACR rated |
Electrical Connection | Box lugs |
Wire Size | 1 x AWG 8...AWG 2 ( aluminium/copper ) |
Tightening torque | 40.71 lbf.in (4.6 N.m) (AWG 8...AWG 2) |
---|---|
Height | 3.13 in (79.50 mm) |
Width | 2 in (50.80 mm) |
Depth | 2.98 in (75.69 mm) |
