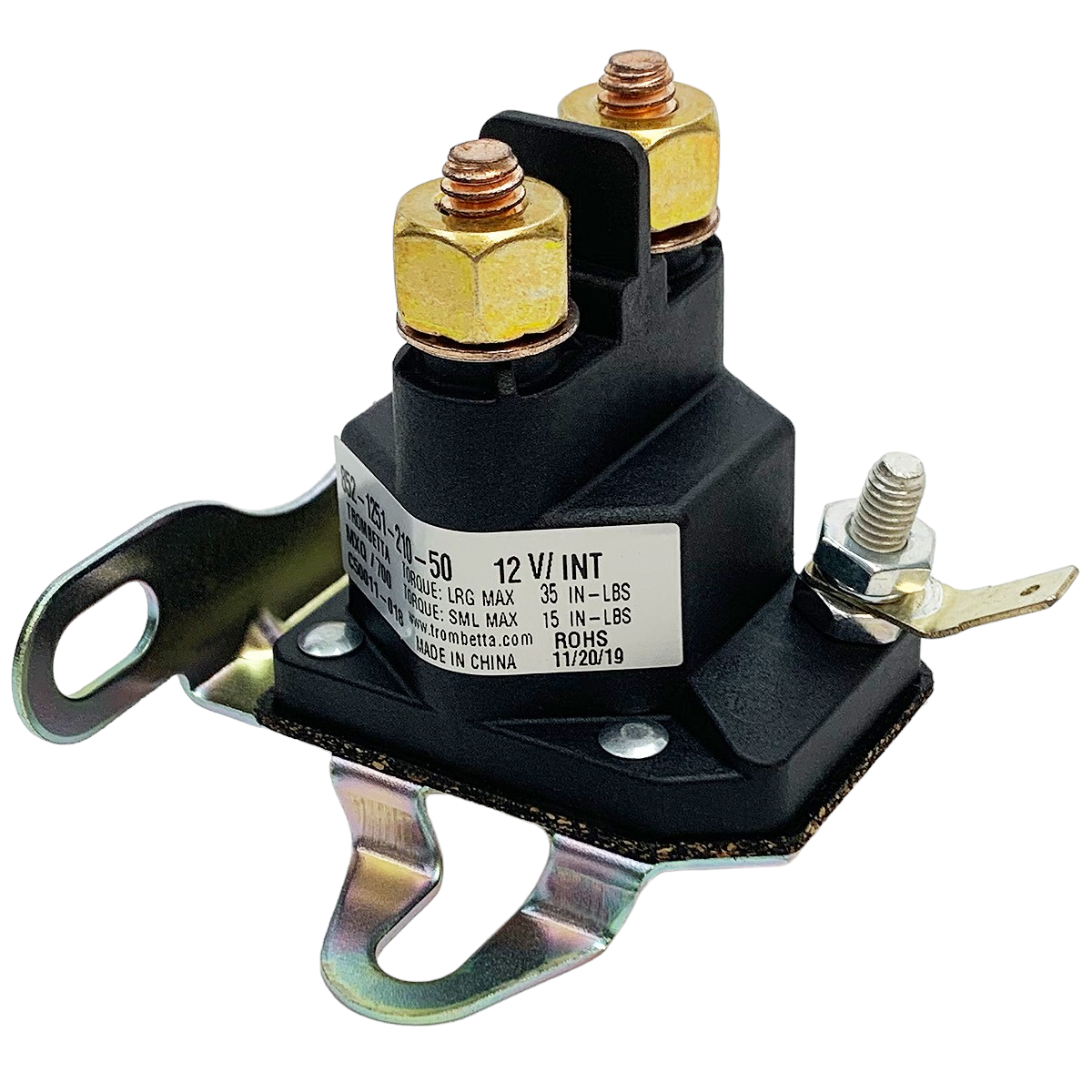

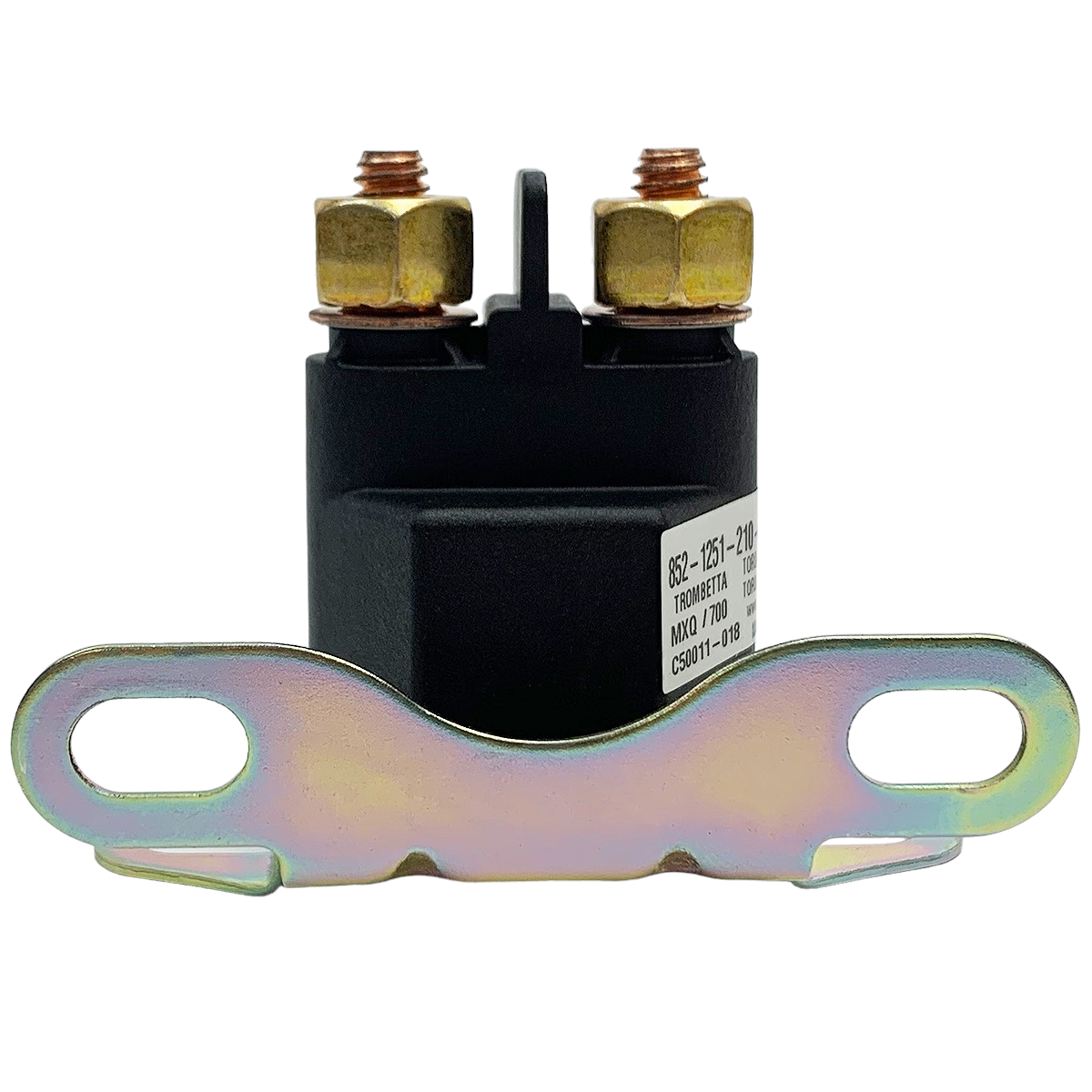

Trombetta 852-1251-210-50 12VDC Power DC Contactor, 200A

Plastic Family: 12 Volt DC Contactor (852-1251-210-50)

This brand-new model features a smaller profile, push nut fastener stud locks and a lower (6.5 volt) pull in voltage than the previous 852-1251-210 model. A strong, high temperature resistant housing surrounds this improved Trombetta 852-1251-210-50 DC Contactor, resulting in high efficiency and suitability for a variety of environmental conditions.
This 12-volt contactor can be used for both small engine starting applications and driving electric motors.

This model is a direct replacement for part # 852-1251-210, which has been discontinued. Trombetta considers the new "-50" model an improved version of the 852-1251-210, mainly because of the push nut fasteners. We will no longer be stocking the old 852-1251-210. You may use this model with confidence.

Plastic Family: 12 Volt DC Contactor; (2) 1/4-20 copper contact studs w/ push nut fasteners & (1) grounded 10-32 stud, plus spade; 15% sustained duty; standard bracket.

• Trombetta 852-1251-210-50 12VDC Power DC Contactor
• Category: Contactors
• Manufacturer: Trombetta
• Ideal for high volume, cost-sensitive applications in the lawn and garden industry
• Produced in a variety of sizes and pole configurations, these contactors are designed to fit applications ranging from small garden tractors to large UTVs
• A strong, high-temperature resistant housing surrounds the contactor, resulting in high efficiency and suitability for a variety of environmental conditions
• High-temperature coil assembly and brass carrier for the moving contacts stand up under punishing cranking duty
• Voltage: 12VDC
• Intermittent: 200A
• Peak Inrush: 300A
• Coil Configuration: Grounded (1) 10-32 stud, plus spade
• Contact Stud: (2) 1/4"-20 Studs
• 15 percent sustained duty, 20 seconds max.
• Duty Cycle: Intermittent - 15 Percent Sustained
• Contact Material: Copper

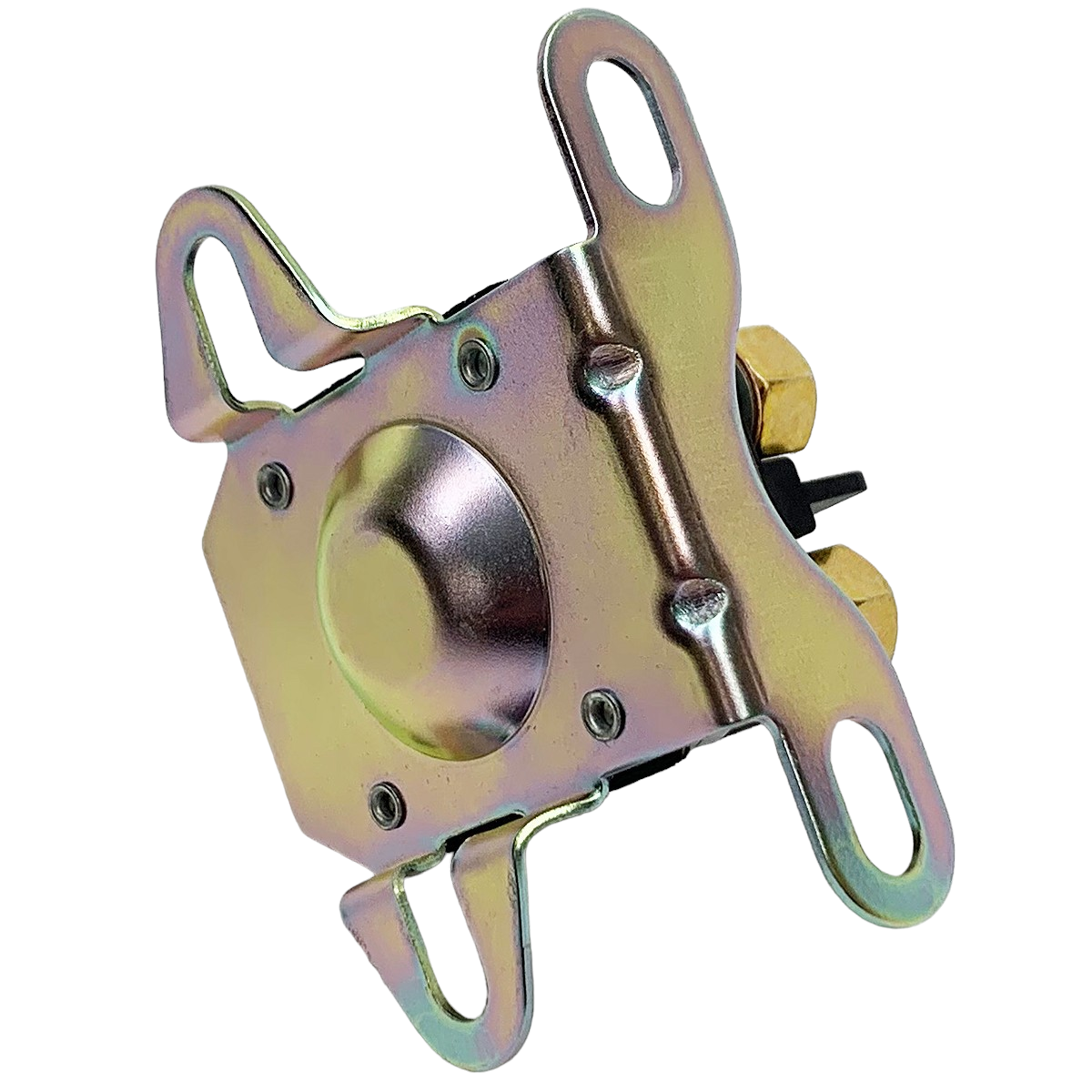

• Mounting Bracket: Universal
