Honeywell  |  SKU: V7-1Z29E9

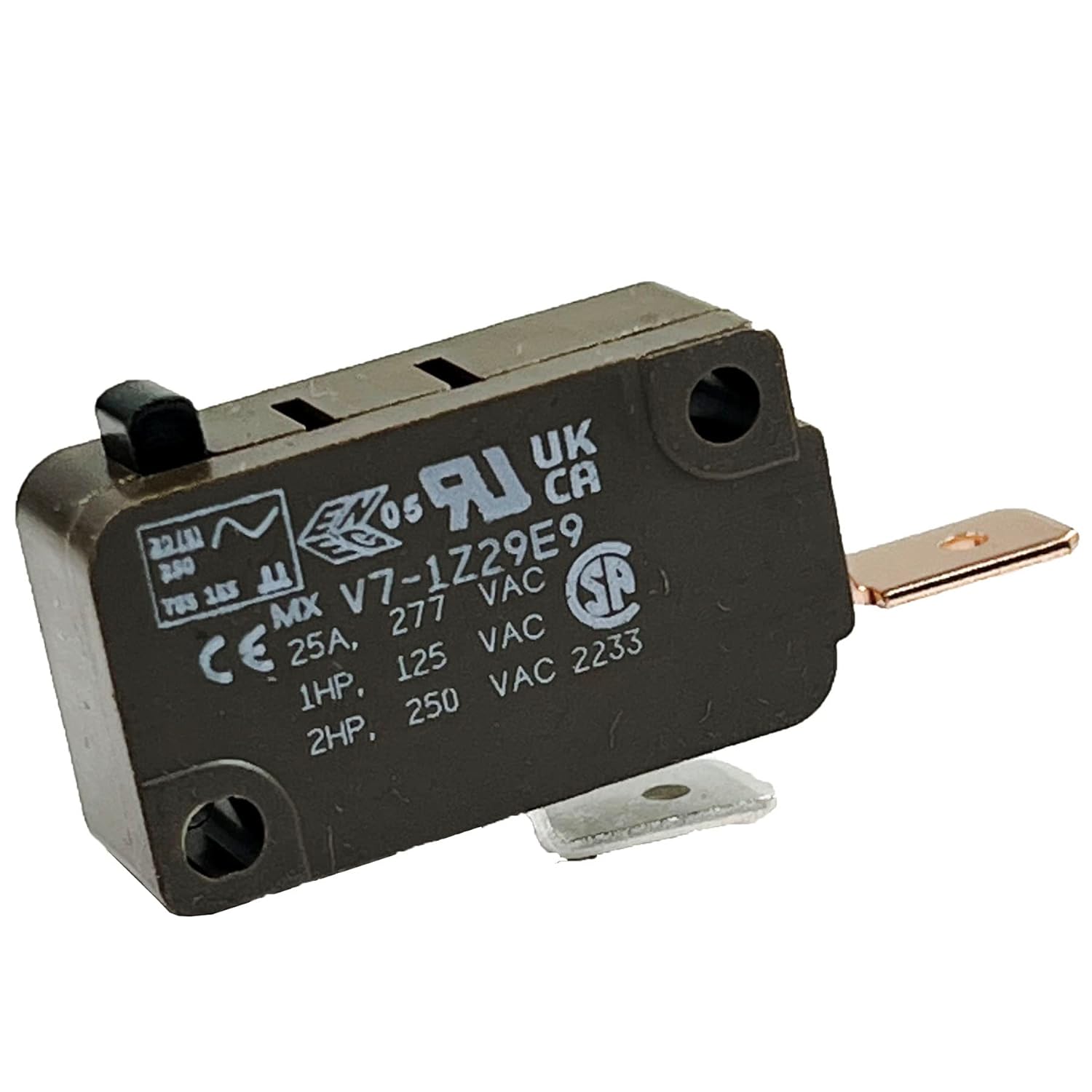

Honeywell V7-1Z29E9 Basic Switch SPST NO Pin Plunger Miniature, V7 Series

$14.99
Shipping calculated at checkout.

Delivery and Shipping

Get same-day shipping on in-stock items if you place your order by 2pm ET. Transit time is 2-6 days. See our Shipping Policy to see how quickly your package will arrive.

Add a stand out message for your customers

Honeywell’s MICRO SWITCH V7 miniature switches are designed for long-term reliability, featuring a rugged switch packaged with a thermoplastic housing. These switches can be installed in a wide range of applications from simple or precision on/off limits, to presence/absence sensing, or embedded in pressure or temperature assemblies. The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in applications. The switch requires as little as 0.15 Newtons (approximately 0.5 ounces) to operate for extremely sensitive applications, or as much as almost 4 Newtons (14 ounces) where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH V7 switches are provided through CSA, ENEC, and UL for global use around the world.

Features
  • Certified with CSA, ENEC, and UL for Global Acceptability
  • Reliable Snap-Spring Mechanism with More Than 60 Years of Proven Service
  • Reliable Performance in Harsh Conditions
  • Actuation on Time

    Product Specifications

    Product Attribute             Attribute Value

    Actuator Type                      Pin Plunger
    Body Style                            Miniature
    Casing Material                   Thermoplastic
    Contact Form                       SPST
    Contact Material                 Gold Alloy⁄Silver Alloy⁄Silver
    Current Rating                    25 A
    Operating Temp.                -40 to +85 °C
    Series                                    V7 Series
    Special Features                 High Temperature
    Standards                             UL Recognized, CSA Certified, VDE Approved

    Termination                         QC Tabs

    Type                                       Basic

    Voltage Rating                     250 V
