TE Connectivity | SKU:
KUP-11D55-12

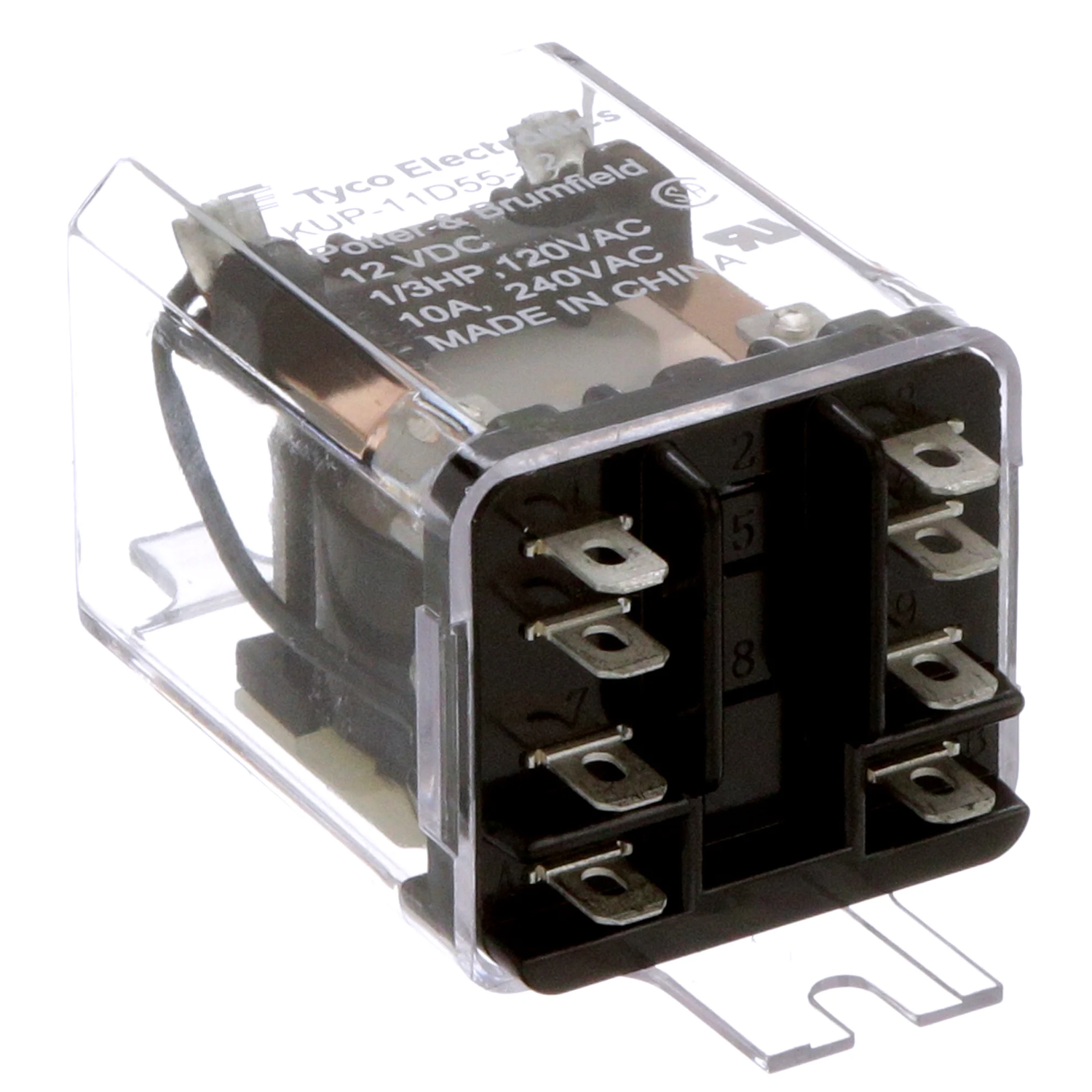

TE Connectivity KUP-11D55-12 Power Relay, E-Mech, DPDT, 10A, 12 VDC, Vol-Rtg 240/28AC/DC, 9 Pin, KUP Series
$25.99
Unit price
/
Unavailable
Shipping calculated at checkout.
TE Connectivity KUP-11D55-12 Power Relay, E-Mech, DPDT, 10A, 12 VDC, Vol-Rtg 240/28AC/DC, 9 Pin, KUP Series is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Get same-day shipping on in-stock items if you place your order by 2pm ET. Transit time is 2-6 days. See our Shipping Policy to see how quickly your package will arrive.
TE Connectivity KUP-11D55-12 Power Relay, E-Mech, DPDT, 10A, 12 VDC...
$25.99
Unit price
/
Unavailable
General Purpose Industrial Relays, 10 Amps, 24 VDC, 472 Ohms
KUP Series relays are U.L. recognized under File E22575 and CSA certified under File LR15734. They are ideally suited for many diverse applications. "A" in the manufacturer's type number denotes 50/60 Hz coil; "D" denotes DC coil. Relays are socket mountable with these exceptions — types KUP14A25 and KUP14D25 are socket mountable with push-to-test button for manually actuating contacts. KUP14A35, KUP14D35, KUP11A35 and KUP11D35 types are socket mountable with highly visible neon lamps which indicate the presence of coil power. KUP14A45 is socket mountable with neon indicator and push-to-test button. KUP5A55, KUP5D55, KUP11A55, and KUP11D55 have flange mount cases. Relays have silver-cadmium oxide, 10 amp contacts with 0.187" (4.8 mm) by 0.020" (0.5 mm) quick connect/solder terminals except for types KUP11A11, KUP11D11, KUP14A11, and KUP14D11, which have fine silver, 5 amp contacts with 0.187" (4.8 mm) by 0.020" (0.5 mm) quick connector/solder terminals.
KUP Series relays are U.L. recognized under File E22575 and CSA certified under File LR15734. They are ideally suited for many diverse applications. "A" in the manufacturer's type number denotes 50/60 Hz coil; "D" denotes DC coil. Relays are socket mountable with these exceptions — types KUP14A25 and KUP14D25 are socket mountable with push-to-test button for manually actuating contacts. KUP14A35, KUP14D35, KUP11A35 and KUP11D35 types are socket mountable with highly visible neon lamps which indicate the presence of coil power. KUP14A45 is socket mountable with neon indicator and push-to-test button. KUP5A55, KUP5D55, KUP11A55, and KUP11D55 have flange mount cases. Relays have silver-cadmium oxide, 10 amp contacts with 0.187" (4.8 mm) by 0.020" (0.5 mm) quick connect/solder terminals except for types KUP11A11, KUP11D11, KUP14A11, and KUP14D11, which have fine silver, 5 amp contacts with 0.187" (4.8 mm) by 0.020" (0.5 mm) quick connector/solder terminals.
