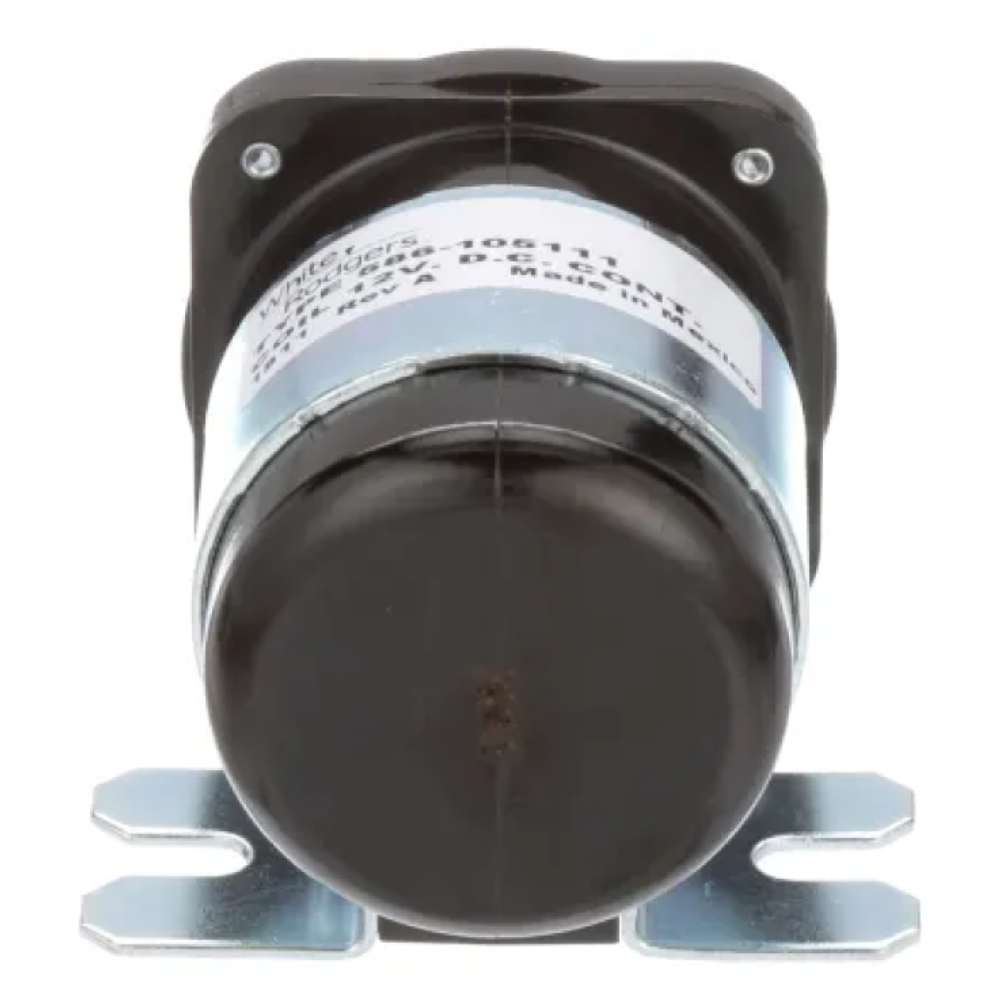

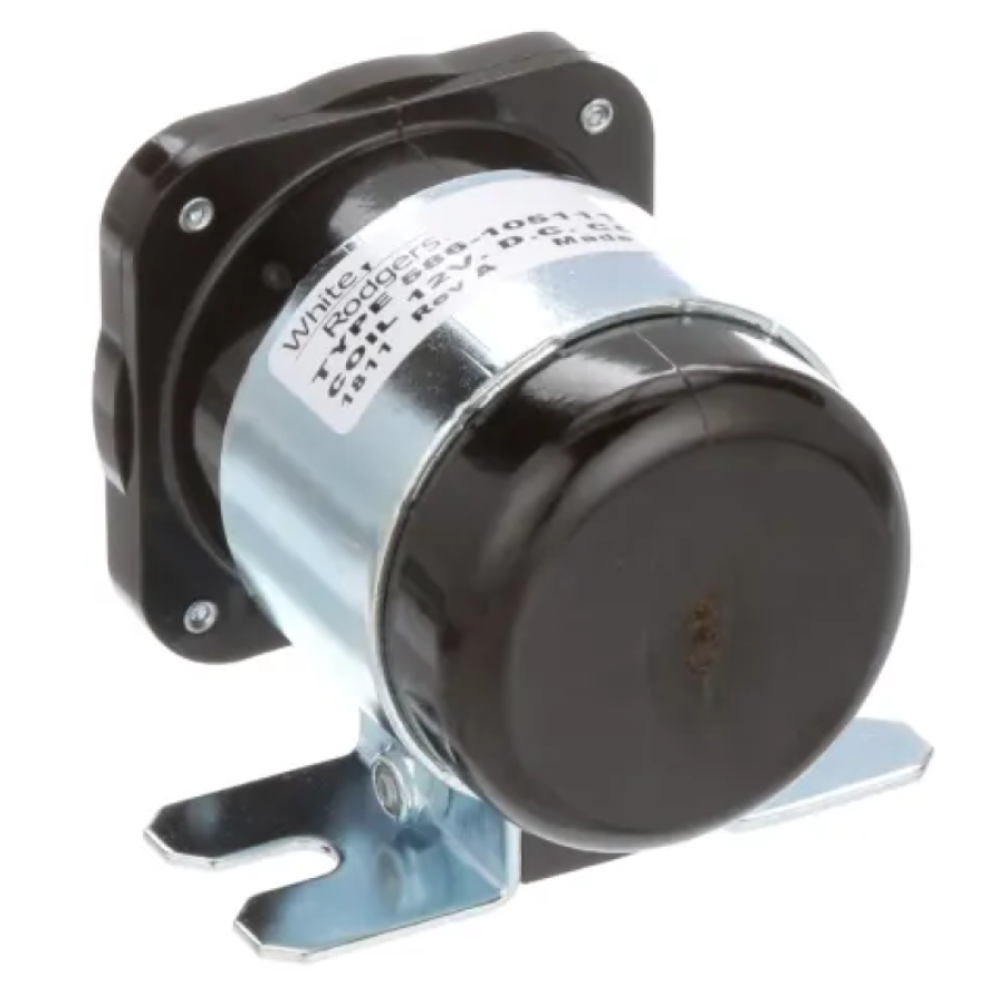

White Rodgers 586-902 12 Contactor 12 V DC Power Solenoid
White Rodgers 586-902 12 Contactor 12 V DC Power Solenoid is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Get same-day shipping on in-stock items if you place your order by 2pm ET. Transit time is 2-6 days. See our Shipping Policy to see how quickly your package will arrive.
White Rodgers 586-902 12 Contactor 12 V DC Power Solenoid
White Rodgers 586-902 12 Contactor 12 V DC Power Solenoid
Features:
Continuous-Duty Cycle

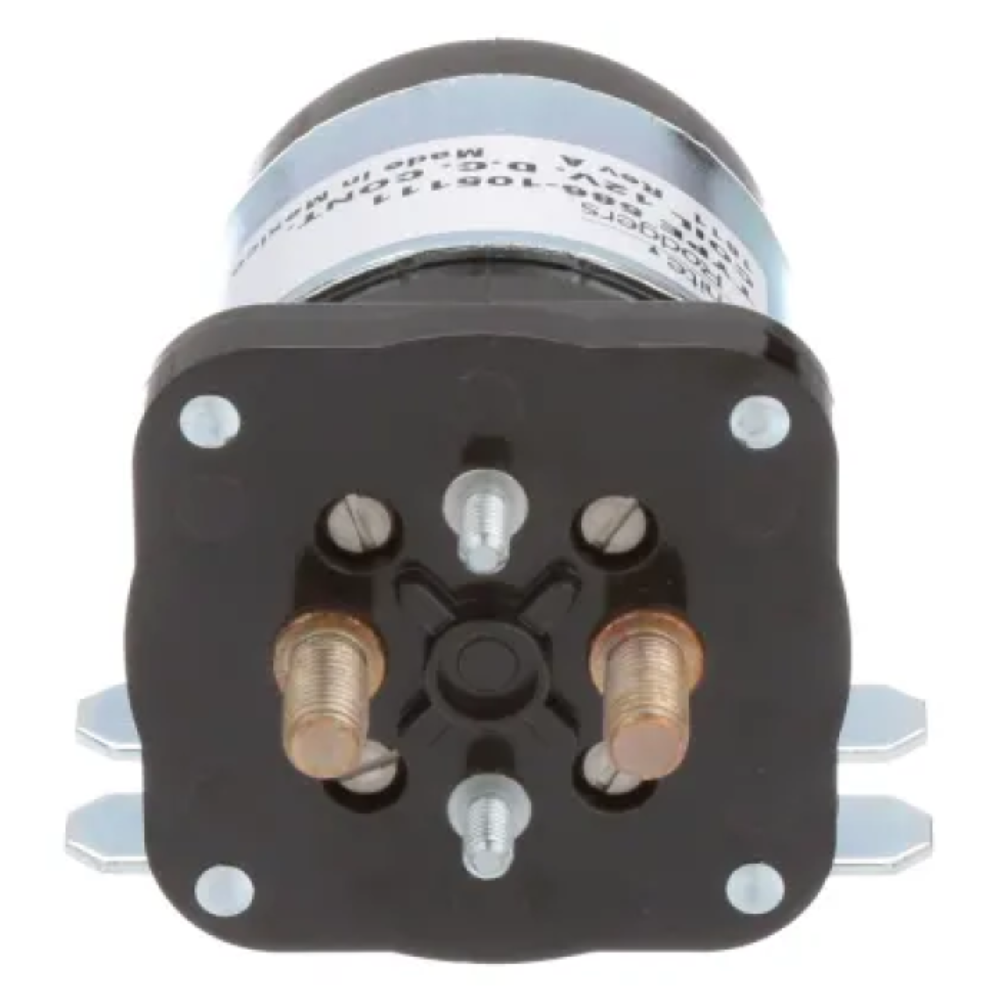

Terminals: Coil ? 10-32; Contact ? 5/16-24
Water and Dust Resistant
Vertical Plane with Coil Terminals Up Mounting
Standard Bracket
Specifications:
Dim./Wt.: SPNO ? 3.69” ? 3.30” ? 2.90”/24 Ozs
Dim./Wt.: SPDT ? 4.61” ? 3.30” ? 2.90”/26 Ozs
Operating Temperature: -40?F to +149?F
Hardware Torque Specifications:
Contact Terminal: 60 Inch-Lbs. Maximum
Coil Terminal: 12-18 Inch-Lbs.
Product Attribute Attribute Value
Contact Current Rating 200 A
Contact Material Silver Alloy
Control Voltage 12 V
Depth 2.9 in
Dimensions 0.00 in W X 3.69 in L X 2.90 in D
Dimensions 3.69 x 3.3 x 2.9 in
Length 3.69 in
Maximum Operating Temperature 150 F
Minimum Operating Temperature -40 F
Mounting Type Panel Mount
Number of Poles 1
Primary Type Contactor
Series 586 Series
Special Features Isolated Coil
Temperature Operating Range -40 to 150 F
Terminal Type Stud
Type Solenoid Contactor
Voltage Rating 2 V
